SOKPACK, a Shenzhen-based custom packaging manufacturer established in 2012, has spent more than a decade engineering these boxes for global B2B clients ranging from indie beauty founders to heritage jewelry houses. This article breaks down what Rigid Drawer Boxes are, how they’re built, why they matter, available customizations, and the industries where they deliver the greatest ROI.

Table of Contents

What Is a Rigid Drawer Box?

A Rigid Drawer Box consists of two precision-engineered components:

Outer Sleeve (Shell/Case)

A four-sided rigid structure—typically 1000–1500 gsm greyboard—wrapped in art paper, leatherette, linen-texture paper, or FSC-certified kraft. The sleeve is open at one end and often features a die-cut “finger pull” or thumb notch to allow easy access to the inner tray. Its broad exterior surfaces are prime real estate for branding.

Inner Tray (Drawer)

A rigid platform with raised side walls (usually 15–30 mm) that slides into the sleeve. The tray holds the product—often secured by a custom die-cut insert (EVA foam, velvet-lined cardboard, molded pulp)—and is sized with a tolerance of ±0.5 mm to ensure smooth travel without wobble or excessive tightness.

When the tray is fully inserted, the package presents a seamless, closed face. Pulling the tray open engages the user in a tactile, linear motion that feels substantial and controlled—very different from lifting a lid.

Why Brands Choose Drawer Boxes Over Other Formats

Rigid drawer boxes occupy a unique position in the packaging ecosystem:

• Ritualized Unboxing: The sliding action builds suspense. Customers describe it as “opening a treasure chest” or “drawing a secret compartment,” which translates into higher unboxing satisfaction and more shareable UGC (user-generated content).
• Superior Product Security: The sleeve shields the product from top-pressure and side-impact better than a two-piece lid/base box. Combined with a form-fitting insert, the product stays immobile during transit.
• Reusable Keepsake: Unlike folding cartons that tear, rigid drawer boxes are retained for jewelry, mementos, or desk organization—extending brand visibility long after purchase.
• Maximum Branding Surface: Both the sleeve exterior and the interior base of the tray (visible when pulled open) can carry foil-stamped logos, patterned prints, or personalized messages.
• Perceived Value: The weight, friction-quality of the slide, and rigidity signal “this is worth what you paid” before the product is even seen.

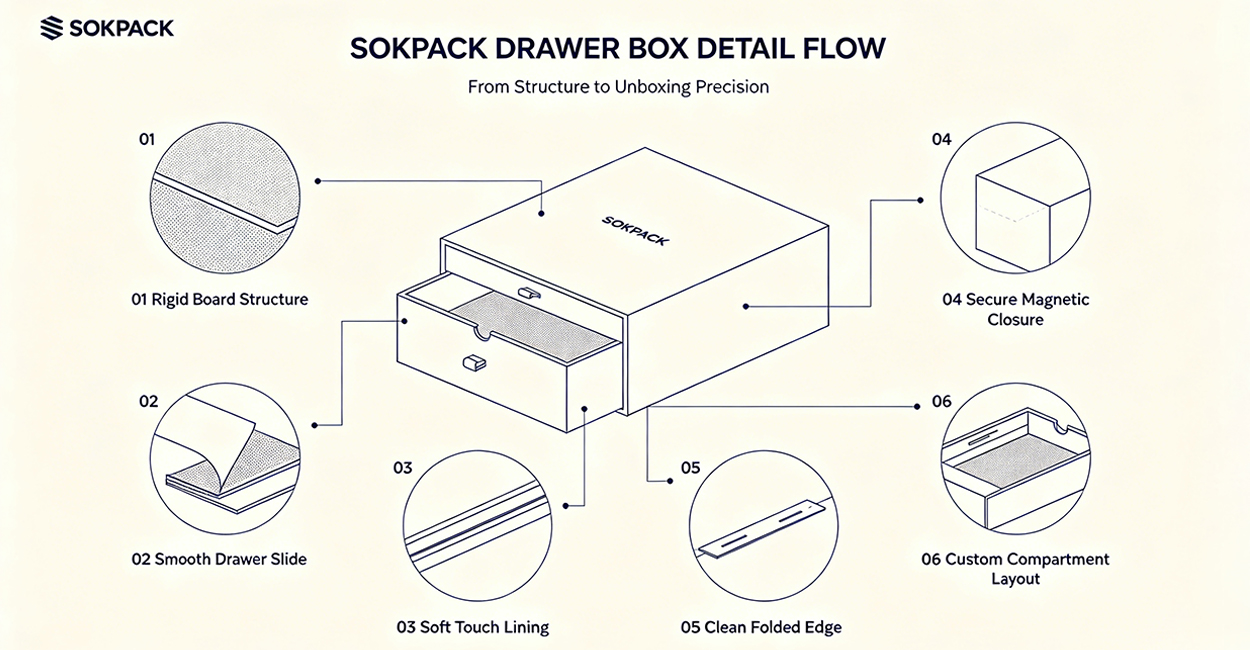

Structural Engineering & Materials

Core Board Specifications

• Greyboard Density: Typically 1000 gsm (standard), 1200 gsm (mid-weight items like fragrance sets), or 1500 gsm (heavier items—watches, crystal, large gift sets).
• V-Groove Scoring: Corner joints are machine-V-grooved (not just creased) to ensure sharp 90° angles after wrapping—a hallmark of true rigid box quality.
• Tolerance: Sleeve interior vs. tray exterior clearance is engineered to ~0.8–1.2 mm per side for smooth glide without rattle.

Wrap Papers & Textures

• Coated Art Paper (CMYK/PMS): For photo-realistic prints, patterns, or brand colors.
• Textured / Specialty Paper: Linen-look, suedette-feel, Japanese washi-style, leatherette (faux)—adds dimension even in monochrome.
• FSC-Certified Kraft / Recycled Board: For “eco-luxury” positioning; can be paired with soy-ink prints and minimal foil.

Finger Pull / Notch Options

• Standard Thumb Notch: Rounded or rectangular die-cut in the sleeve front face.
• Hidden Notch: Positioned on the bottom edge or side for ultra-minimalist exteriors.
• Ribbon/Pull Tab: Satin, grosgrain, or cotton ribbon glued to the tray front as a pull aid—doubles as decorative element.

Printing, Finishing & Insert Options (SOKPACK Capabilities)

Element	Available Custom Options
Printing	Offset (CMYK/Pantone spot), Digital (short runs/samples), UV-varnish spot, full-body flood
Surface Finish	Matte / Gloss / Soft-Touch Lamination, Gold/Silver/Copper Foil Stamping, Blind Deboss/Emboss, Spot UV
Interior Inserts	Die-cut greyboard platform, EVA foam (plain or velvet-lined), molded pulp, corrugated honeycomb, custom-cut foam for irregular shapes
Sustainability	FSC® board, vegetable-based inks, plastic-free all-paper catches, 100% mono-material recyclable builds
Size	Fully custom—commonly 60×60×30 mm (ring box) up to 350×250×80 mm (large gift set); non-standard shapes on request

Typical Applications by Industry

Industry	Core Use Case
Jewelry & Watches	Ring/earring/necklace boxes with velvet insert; watch winder boxes with padded tray
Beauty & Fragrance	Serum + cream mini sets, perfume coffrets, holiday limited-edition palettes
Corporate Gifting / PR Kits	Onboarding kits, VIP client appreciation boxes, press samples
Luxury Accessories	Silk scarf, tie, or pocket square presentation; pen sets
Collectibles / Mini Electronics	High-end earbuds, memory cards, luxury USB drives

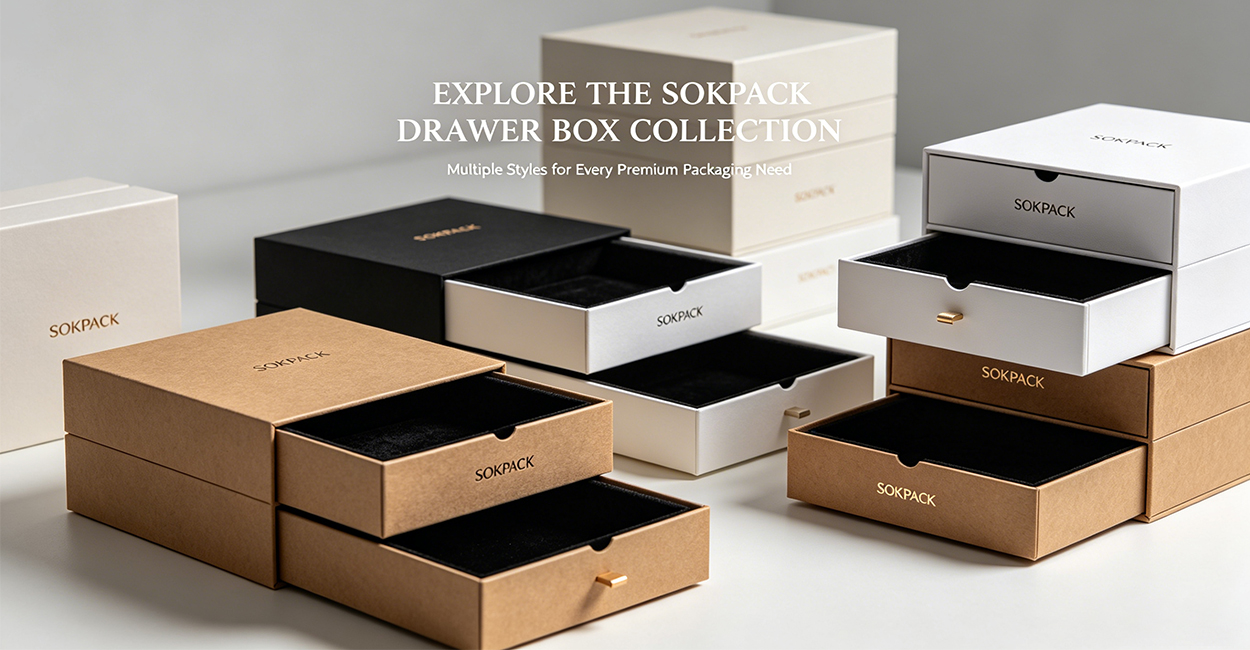

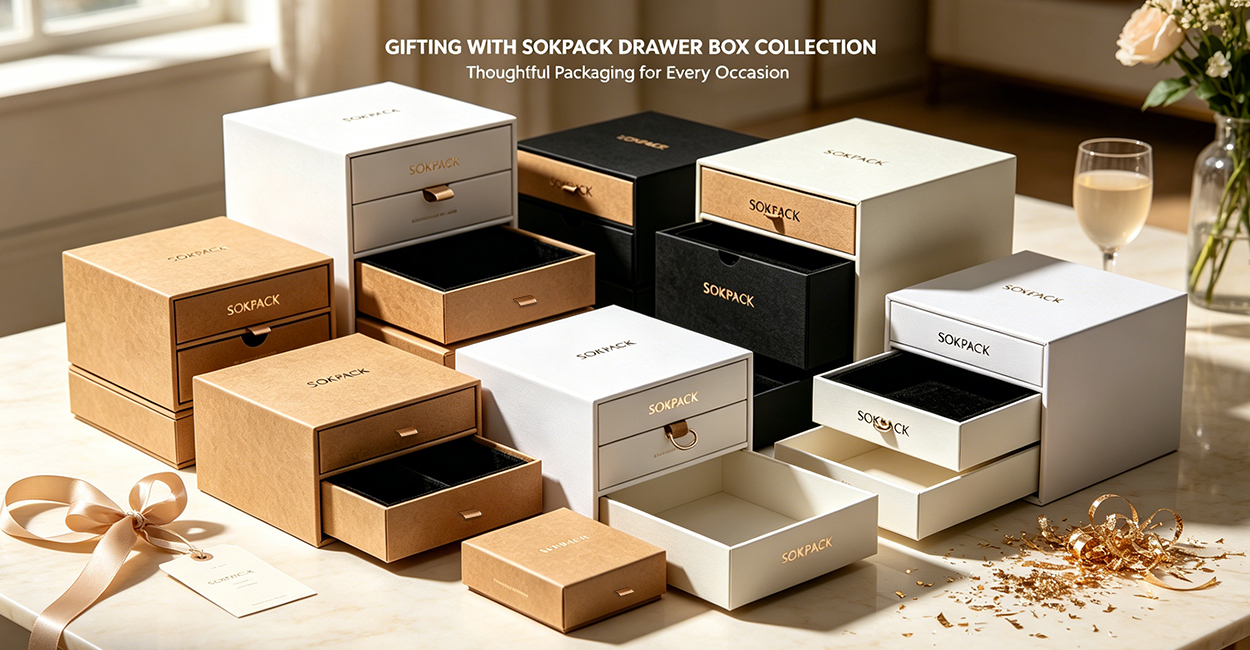

Popular Drawer Box Variations

Variant Style	Description	Best For
Classic Two-Part Drawer Box	Separate sleeve + tray; magnet optional in sleeve	Jewelry, cosmetics, gifts
Double-Drawer Box	Two side-by-side or stacked trays within one sleeve	Multi-SKU sets (day/night creams, ring + earring)
Drawer Box with Partial Lid (Display Window)	Sleeve has a die-cut window with clear PET film; product partially visible	Fragrance, collectibles
Matchbox-Style (Mini Drawer)	Very shallow tray, often used as secondary packaging inside a larger box	Sample sachets, loose gemstones
Collapsible / Flat-Pack Drawer (R&D stage)	V-groove scored for flat shipping; re-forms with insert guides	Cross-border brands optimizing freight

The SOKPACK Advantage

Since 2012, SOKPACK has specialized in bridging structural engineering with brand storytelling. For drawer boxes specifically, we provide:

• In-house dieline creation (AI / CAD / PDF) matched to your product dimensions
• Prototype sampling within 3–5 working days, including glide-quality testing
• Heidelberg offset and digital presses for consistent color matching (Pantone-certified workflow)
• FSC®, ISO 9001, Sedex-certified production
• Low MOQ starting from 300–500 pcs (depending on specs)
• DDP shipping to US / EU / UK / AU

Every rigid drawer boxes we produce is drop-tested for compression resistance and glide-checked for smoothness before leaving the factory.

Conclusion: Packaging That Performs—and Persuades

A rigid drawer box does more than contain a product. It choreographs the moment of discovery. It tells the customer: this brand cares about detail, quality, and your experience.

Whether you choose a minimal kraft sleeve with blind-debossed logo or a fully printed leatherette wrap with gold foil and velvet insert, the drawer box remains one of the most effective ways to elevate perceived value and deepen brand loyalty.

SOKPACK engineers these experiences from concept to crate—helping global brands balance aesthetics, protection, and supply-chain practicality.

About SOKPACK

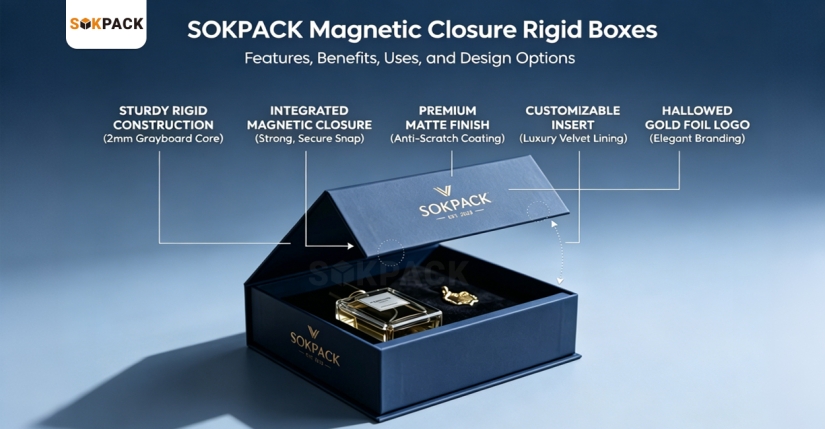

SOKPACK is a Shenzhen-based custom packaging manufacturer (est. 2012) specializing in rigid gift boxes, magnetic closure boxes, rigid drawer boxes, Advent calendars, and eco-luxury packaging for B2B clients worldwide. With two wholly-owned production facilities, Heidelberg presses, and FSC-certified material sourcing, SOKPACK delivers packaging that protects, promotes, and persuades.
